Services

Structural Design

Frames, brackets, weldments, and load-bearing assemblies. We size for strength and fatigue, with manufacturability built in from the start.

Sheet Metal Design

Enclosures, chassis, and brackets designed with bend allowances, tooling limits, and finish requirements built in from the start.

Plastic Injection Design

Part design with draft, wall thickness, and gate locations worked out before the mould maker sees a file. DFM included.

Automation

Custom fixtures, jigs, end-of-arm tooling, and machine guarding designed around your existing equipment, throughput targets, and operator workflow.

PCB Layout/Reverse Eng.

Through-hole to surface-mount conversions, schematic recovery, and modern board layout from legacy hardware — including obsolete part substitution.

PCB Board/Film Digitizing

Old Diazo films, phototools, and bare boards scanned, cleaned up, and rebuilt as production-ready Gerber files with full layer data.

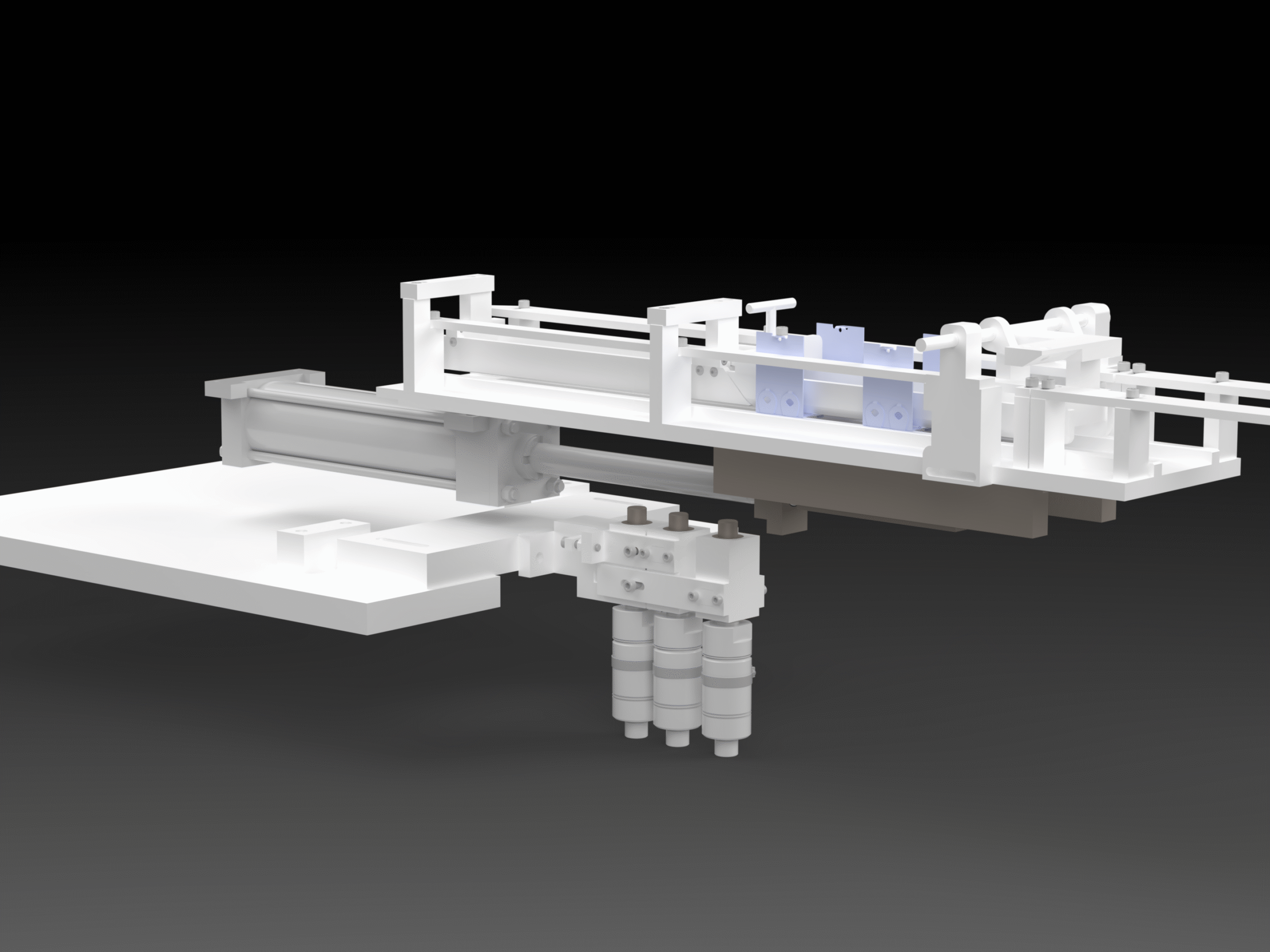

Custom pnematic feeder

Custom pneumatic part feeder designed for an automated drilling cell, delivered to a multinational manufacturer running high-volume production lines.

Plastic PCB enclosure

Custom plastic PCB enclosure designed for a Canadian SME, with integrated board standoffs, cable routing, and snap-fit assembly throughout.

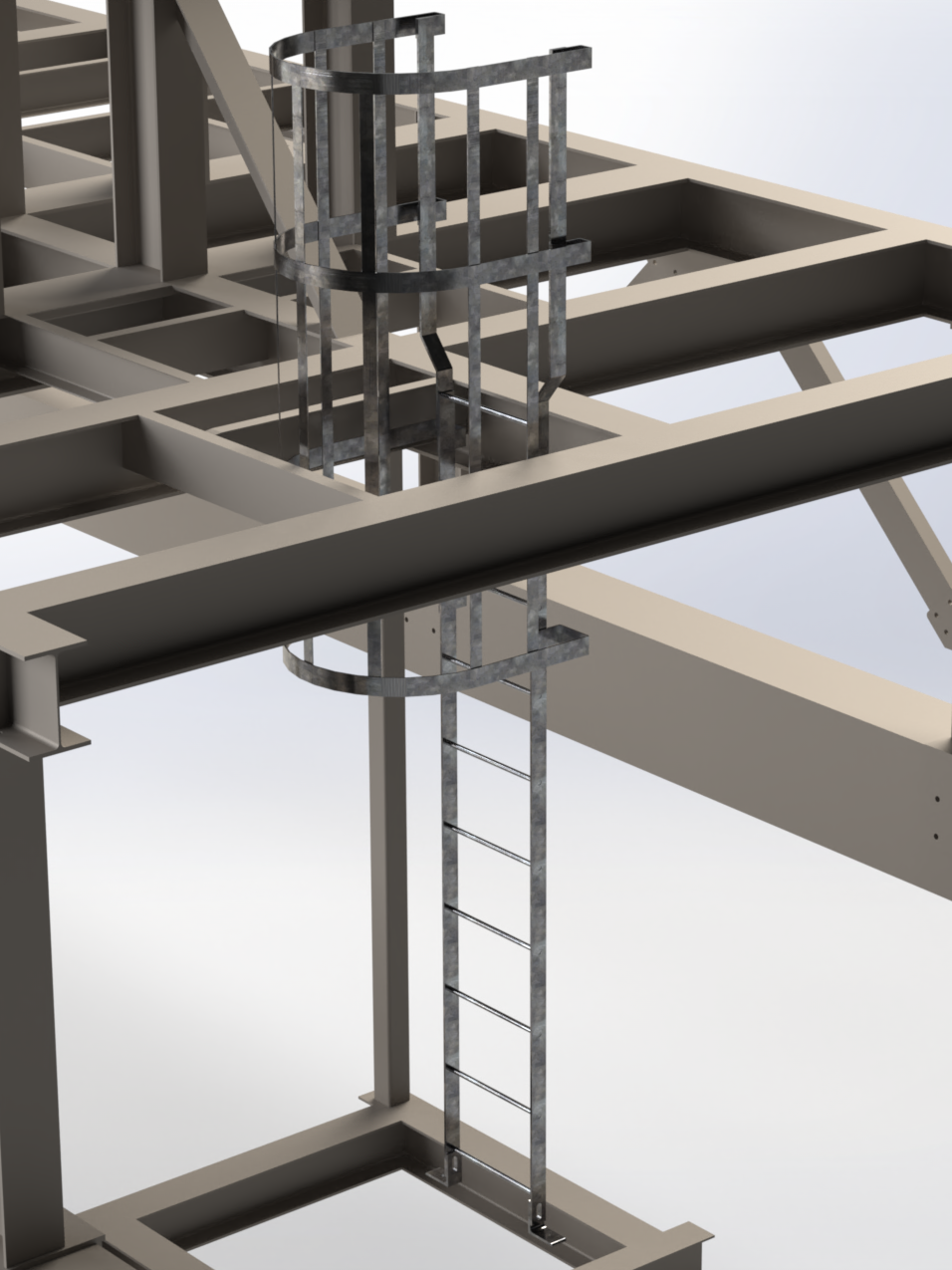

Custom ladder

Custom galvanized steel ladder designed for the Alberta oilfields, built to withstand harsh weather, heavy use, and corrosive operating conditions.

Calgary Restaurant Patio

Galvanized ladder

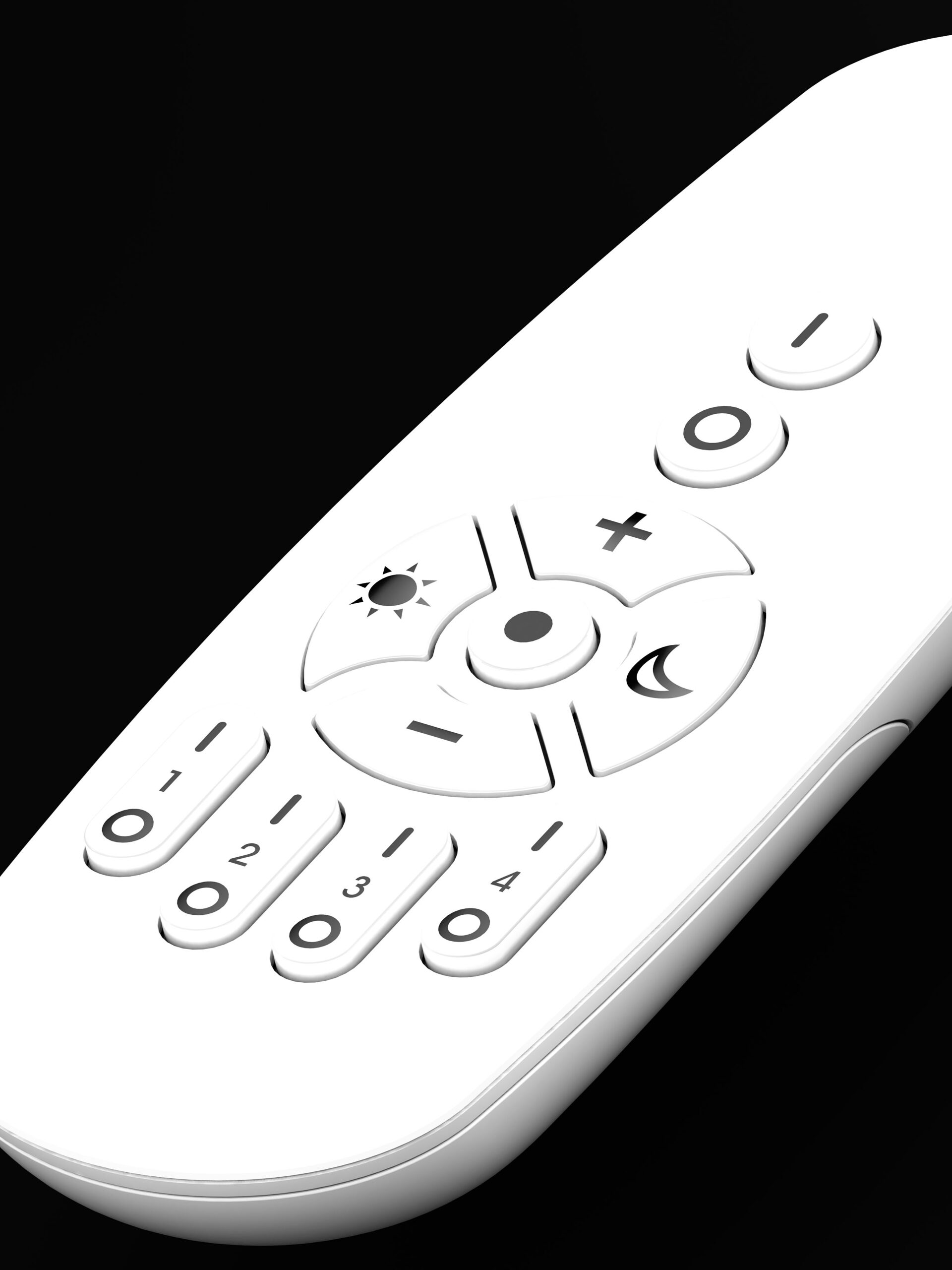

Bluetooth LED Remote

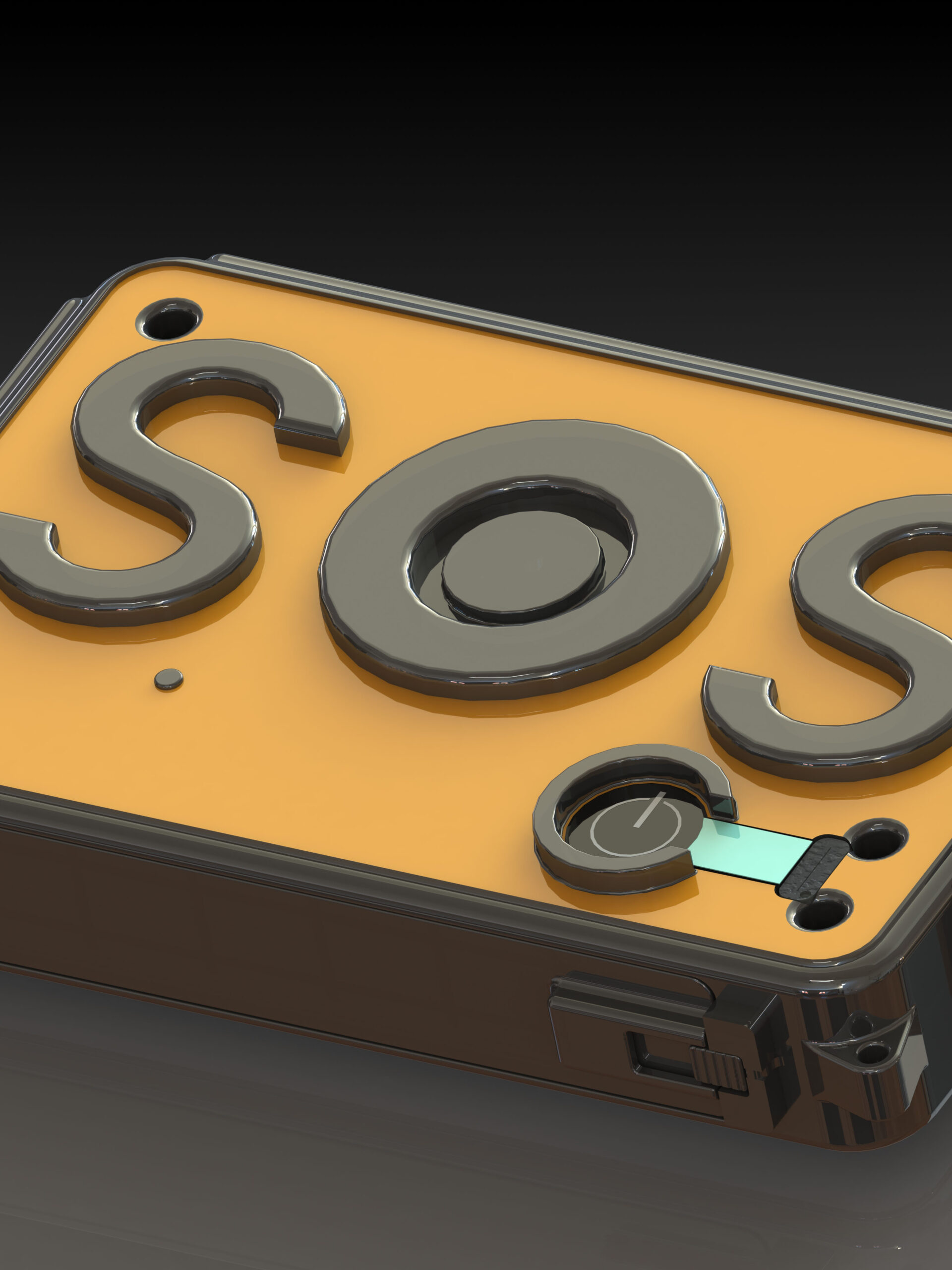

SOS LED Safety

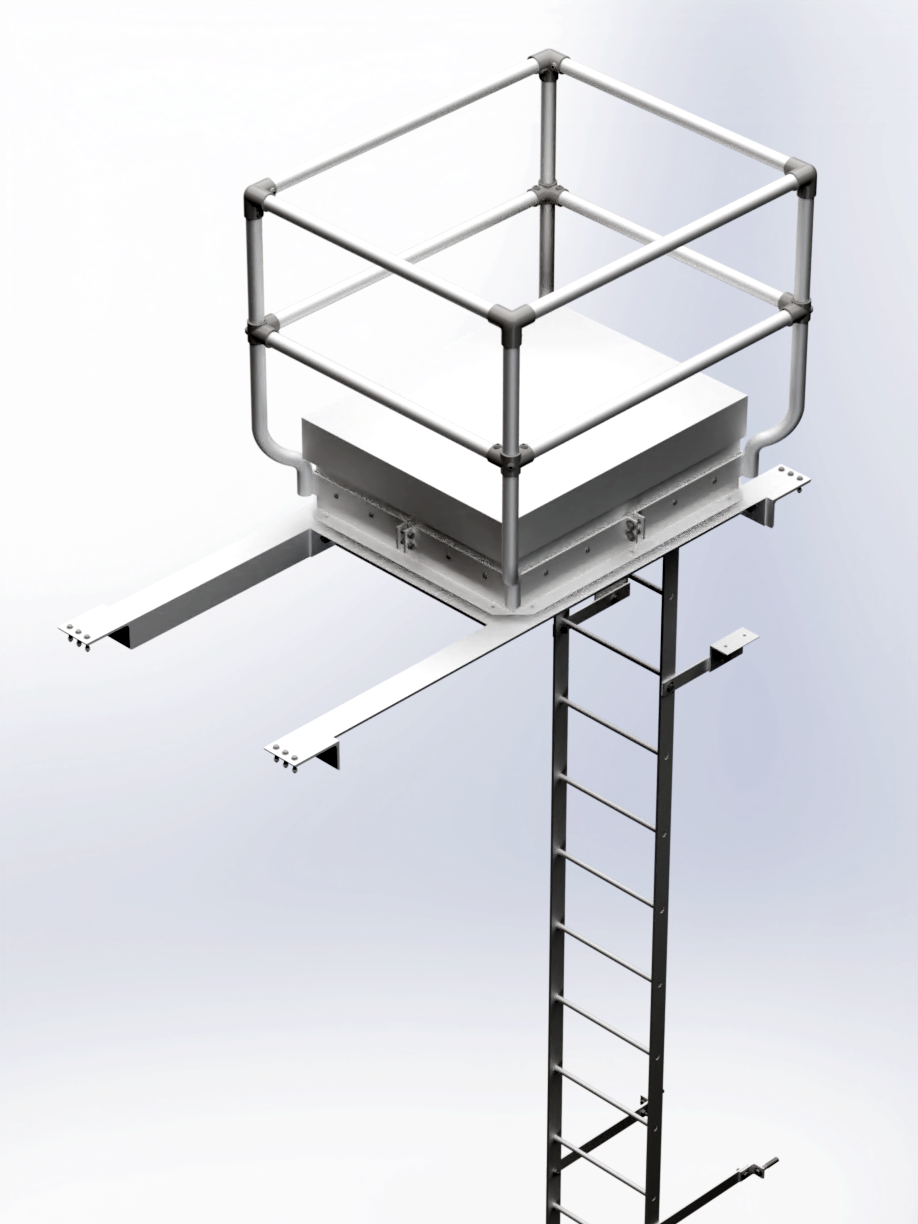

Custom roof hatch

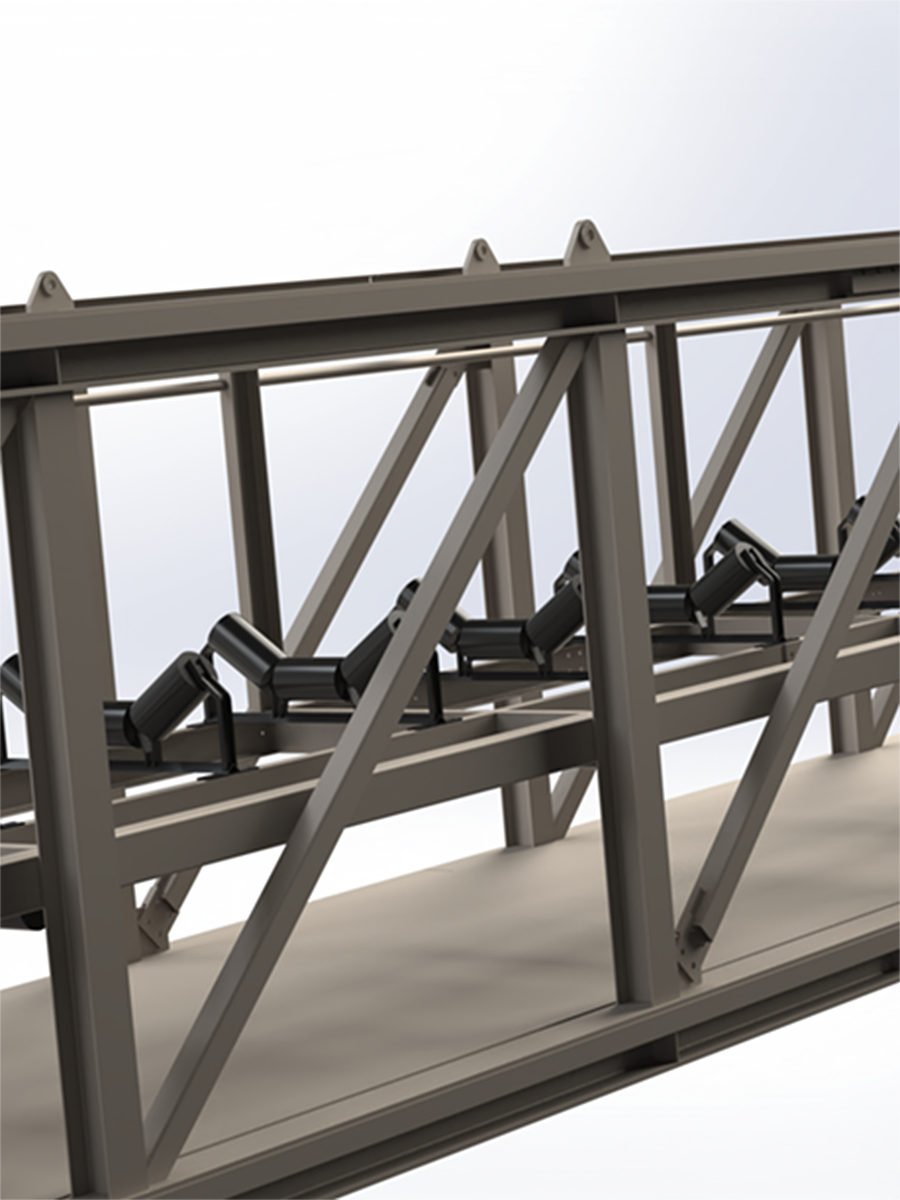

Concrete Conveyor

Creative Solutions.Expert Design.
